Roto Eifel

Sistemas completos de soleira para portas permanentemente herméticas

  • Soleira com separação térmica
  • Altura de construção de 20mm – sem barreira conforme a DIN EN 18040
  • Aparafusamento oculto
  • Elementos de fecho  inseríveis niveladas sem mecanização

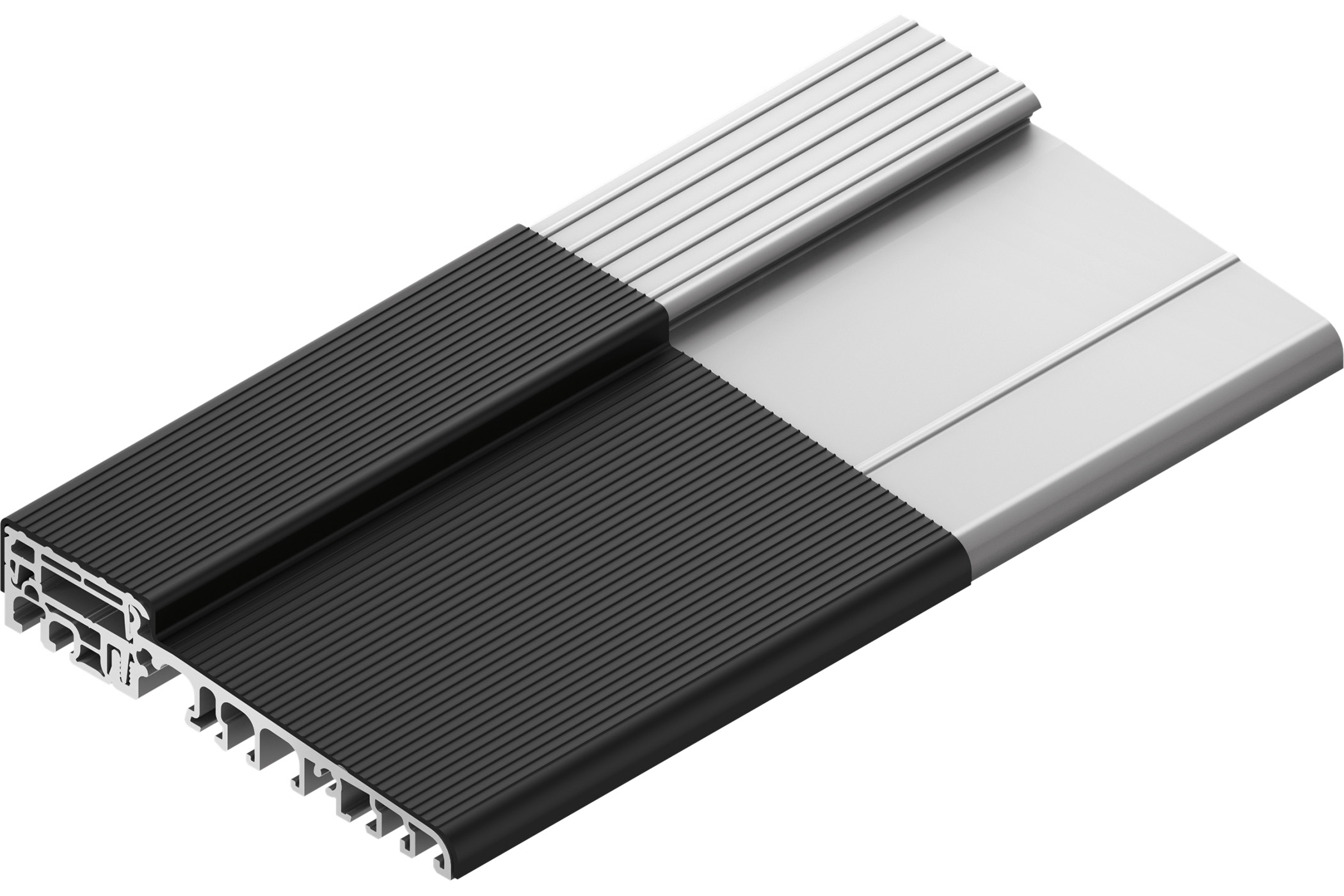

O programa Roto Eifel inclui soleiras com separação térmica para portas de entrada, varandas e terraços em PVC e madeira. Estas soleiras criam um acesso ótimo ao exterior e proporcionam um melhor isolamento térmico. Com uma altura de construção de 20 mm, são classificados como sem barreiras de acordo com a DIN EN 18040. Para a fabricação de soleiras Roto Eifel, são utilizados apenas materiais de PVC resistentes aos raios UV e altamente resistentes aos impactos.

As portas principais são pontos energeticamente críticos dos edifícios. A combinação das soleiras Roto Eifel com vários acessórios como:

  • Pingadeiras
  • Vedantes inferiores automáticos
  • Isolamento para cobertura
  • Defletores de vento

gera um processo isotérmico aprimorado e ótima proteção térmica.

A montagem das soleiras é realizada com auxílio de suportes de soleiras adaptadas conforme o perfil ou, em alternativa, sem suportes e com auxílio de fresagem no perfil. Estão disponíveis em 15 profundidades de montagem entre 40 mm e 140 mm.

Acessórios

Pingadeiras

As pingadeiras Roto Eifel em alumínio de alta qualidade protegem eficazmente contra chuvas torrenciais. O parafuso de montagem feito de material resistente às tempestades é fixado sob o perfil de maneira variável.

Pingadeiras Design

  • Modelo de design composto por perfil de acomodação e perfil de encaixe
  • Combinável com lado da dobradiça Roto NT Designo
  • Substituição simples de juntas
  • Capas de aparência uniforme
  • Para uso em portas de duas folhas com inversor



Pingadeiras Confort

  • Diferentes possibilidades de posicionamento para juntas
  • Substituição simples de juntas
  • Capas de extremidade de aparência uniforme fixam a junta
  • Para uso em portas de duas folhas com inversor



Pingadeiras  Standart

  • Variante básica sem ranhura de alojamento para juntas
  •  Ideal para aro de folha com ângulo de 90 graus

A vedação inferior Texel patenteada é uma adição útil do ponto de vista energético. Vedação eficaz na soleira quando a porta está fechada.

  • Testado à prova de água a chuva torrencial
  • Alta confiabilidade operacional mesmo com fortes flutuações de temperatura
  • Vedação da escova frontal para reduzir a necessidade de limpeza
  • Corpo em PVC com câmaras ocas para melhorar o isolamento acústico

Para uma ligação estável e limpa das soleiras ao aro, existem diferentes suportes de soleira e suportes de poste central para os sistemas de perfis mais comuns.

Alternativamente, também é possível montar sem suportes de soleira fresando o contorno das soleiras na armação com a ajuda de uma retificadora.

O programa Roto Eifel é completado com uma extensa gama de acessórios práticos:

  • Defletor de vento para a vedação vertical do espaço do canal
  • Aerostopp como contra apoio para o defletor de vento
  • Pontes de cobertura (ver imagem) para acomodação das persianas e ejeções da barra
  • Vários tipos de juntas, como vedações de arrasto, vedações de escova e vedações anti gotejamento
  • Vários perfis adicionais (por exemplo, perfil de segurança para as fases de construção)
