Roto Patio Inowa

Ferragem inteligente para sistemas deslizantes hermeticamente fechados

  • Peso da folha até 400 kg
  • Dimensões até 3000 mm de largura e 3600 mm de altura, também no formato 3:1
  • Operação conveniente e simples que requer pouca força graças ao movimento de fechamento inovador perpendicular ao perfil do aro
  • Hermeticamente vedado graças à junta circunferencial e controle ativo de todos os pontos de travamento, inclusive no montante
  • Design harmonioso graças à tecnologia oculta

Roto Patio Inowa representa uma tecnologia de correr completamente nova para portas e janelas de correr feitas de madeira, PVC, alumínio e madeira-alumínio. A ferragem é ideal para pequenos e grandes formatos com um peso de folha de até 400 kg.

O movimento de fecho inovador perpendicular ao perfil do aro e as funções Soft especialmente desenvolvidas tornam os elementos deslizantes particularmente fáceis de operar. A tecnologia oculta também permite perfis finos com design moderno.

Com a nova versão – Roto Pátio Inowa | 400 – agora podemos implementar formatos
de grandes dimensões com pesos de folha de até 400 kg.

Grande variedade

Diferentes formatos, materiais de estrutura e variantes de design oferecem uma ampla gama de aplicações.

Deslizamento inteligente

Roto Patio Inowa é sinônimo de maior conforto na abertura, deslizamento e fechamento:

  • O inovador movimento de fecho transversal ao perfil do aro e a forma de construção com apoio total sobre rolos dispensam o levantamento da folha.
  • A folha move-se confortavelmente sem grande esforço.

Conforto operacional aprimorado com funções suaves para operação sem problemas a longo prazo:

  • SoftClose trava suavemente a folha durante o fecho e desliza-a para a posição final.
  • SoftOpen trava a folha brevemente após a abertura e a coloca na posição final aberta.
  • SoftStop permite a abertura ou fechamento suave da folha com efeito de frenagem. Esta função é utilizada para perfis de madeira-alumínio a partir de um peso de folha
    de 200 kg.

Hermeticidade elevada

 Mesmo em caso de tempestades e chuvas fortes que atingem diretamente o vidro e a estrutura, a ferragem permanece absolutamente hermético.

A vedação do perímetro e o controle ativo de todos os pontos de fecho garantem um sistema altamente hermético.

Design exclusivo

A tecnologia oculta permite o uso de perfis estreitos e retos para criar sistemas deslizantes estéticos.

Aparência elegante graças às grandes superfícies envidraçadas.

Grande diversidade de cores e linha uniforme de manetes.

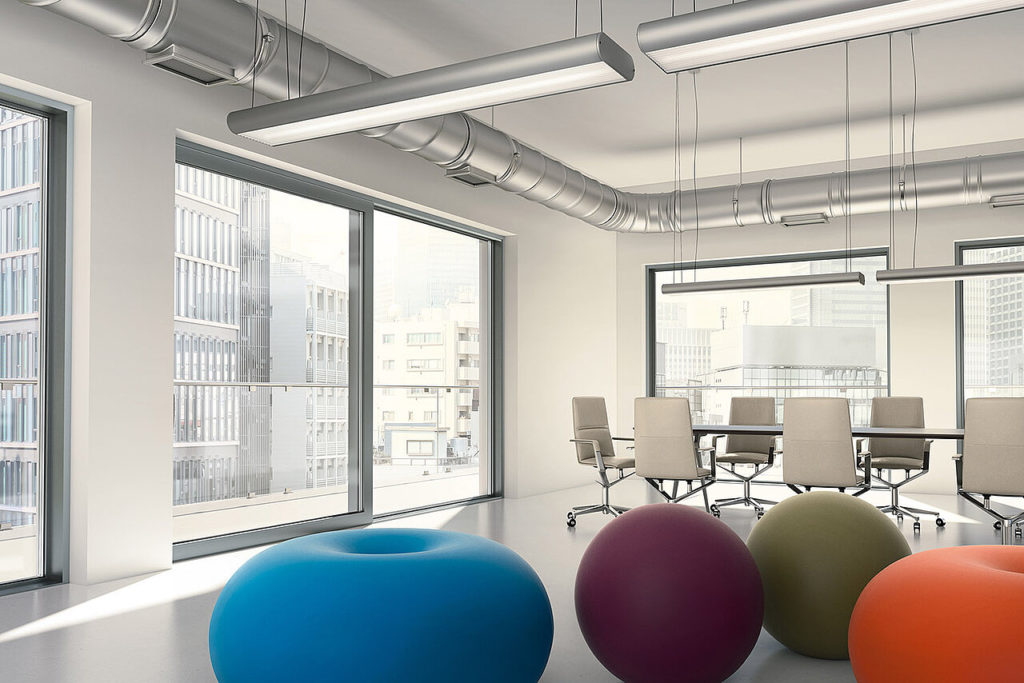

Segurança

Segurança antirroubo de acordo com a classe de resistência RC 2 graças às ferragens perimetrais com pontos de bloqueio ativos.

Fecho seguro graças aos pontos de fecho na barra vertical e no parafuso de fecho em V.

Manete com chave e proteção anti perfuração.



Qualidade premium

Componentes robustos e bem fabricados, testados e aprovados de acordo com os mais altos padrões de qualidade.

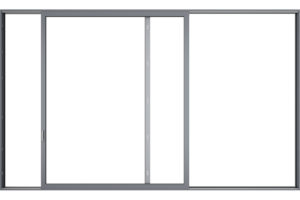

Roto Patio Inowa | 400

A versão para formatos de folha grandes até 3.000 mm de largura e 3.600 mm de altura e pesos de folha até 400 kg

  • O deslizamento de folhas grandes e pesadas é feito sem esforço; uma manete mais comprida não é necessária.

    Isso é possível em parte graças aos componentes recém-desenvolvidos que, embora tenham a mesma função do Roto Patio Inowa | 200, são especialmente adaptados para folhas grandes e pesadas.

  • Unidade de carros com rolamentos de esferas

    A unidade de carros contém rolos robustos e suaves que suportam sem esforço o peso elevado.

    O rolamento de esferas linear integrado minimiza o atrito de rolamento, de modo que mesmo os controles deslizantes grandes e pesados ​​deslizam com facilidade.

    Escovas integradas mantêm a sujidade fora dos carros, garantindo uma operação sem problemas.

  • Unidade de estabilização

    Dependendo do tamanho, uma ou duas unidades de estabilização são instaladas como ponto de travagem adicional no centro inferior.

    Essas unidades não carregam carga, mas ajudam a guiar a folha e atuam como um ponto de travamento para garantir a compressão constante da junta.

  • Rolete K

    Os roletes K com rolamento de esferas para materiais de perfil de madeira, madeira-alumínio e PVC substituem os roletes K nos elementos de fecho centrais e ajudam no manuseio confortável do controle deslizante.

  • Rolete de controle D13

    O rolete de controle com rolamento de esferas D13 para material de perfil de alumínio substituem os roletes de controle D8 e contribuem para uma operação confortável do elemento deslizante.

  • Função SoftStop

    A função SoftStop é utilizada com pesos de folha superiores a 200 kg. Inserido na lateral da cremona ou na vertical, garante um fecho ou abertura suave da folha, retardando-a.

    Com pesos de folha até 200 kg, são utilizadas as funções SoftClose e SoftOpen Soft.

Dados Técnicos

Roto Patio Inowa | 200 Roto Patio Inowa | 400
Peso da folha Max 200kg Max 400kg
Largura do canal ferragem da folha Max 2500mm Max 3600mm
Altura da folha Max 2000mm Max 3000mm
Distância de retração 8 mm 8 mm
Segurança RC 2 / RC 2N RC 2 / RC 2N
Diagrama de layout da folha Diagrama A, C e K Diagrama A, C e K
Perfis Controle deslizante para dentro e para fora Controle deslizante para dentro e para fora

Vídeos

Roto Patio Inowa: transformando sua visão em realidade

Roto Patio Inowa: a cidade está viva

Acessórios

Chave de retenção

Ajuda a instalação simples para evitar as funções Soft.

Modelo de perfuração

Roto Patio Inowa | 400, modelo de perfuração para unidade de carros, unidade de estabilização e unidade de controlo.

Montagem

Eficiente: Roto Patio Inowa é otimizado para instalação rápida e fácil.

Cada grupo construtivo (corrediça superior, fecho central e corrediça inferior) necessita apenas de quatro parafusos.

Aparafusar os conjuntos solta o travamento central.

Custos reduzidos de armazenamento e logística graças aos componentes perfeitamente combinados dos comprovados sistemas Roto NX / Roto NT e Roto AL
